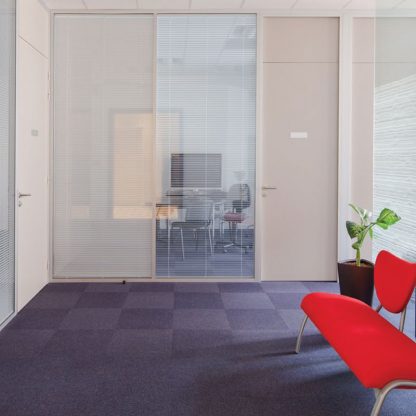

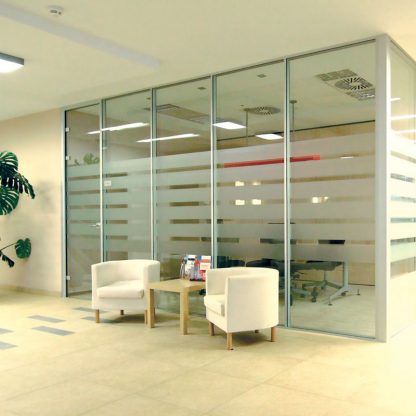

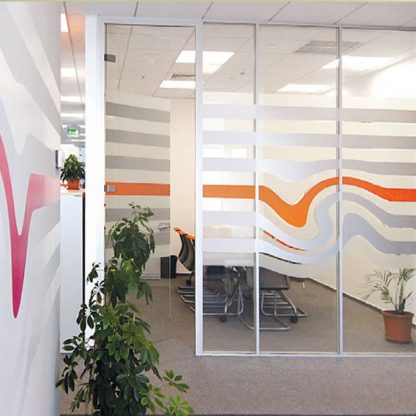

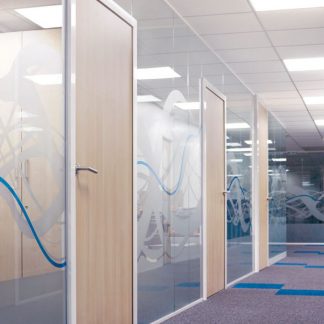

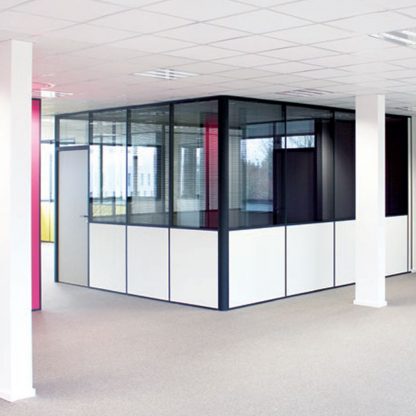

Partition® 26

A reference on the market of removable office partitions, the Partition® 26 appeals thanks to its neat, modern design.

Specifications

  • Demountable aluminium partition, 77 mm thick, with joint-covers.
  • Maximum height : 2700 mm (depending on elevations).
  • Aluminium profiles : silver anodised or RAL powder-coated.
  • Any configuration possible : full-height solid, full-height glazed, glazed above dado panel, glazed at door height, multi-transoms, etc.
  • Top runners, down runners and joint-covers : 26 x 1.5 mm.
  • Alternative runners : top runners for suspension hooks, with adjustable joint-covers, top and/or down recessed runners.
  • Single glazing profiles, double glazing profiles, in aluminium or PVC.
  • Doorframe profiles : square or rounded. Adjustable reversible hinges to be fixed on the edge of the door.
  • Square or rounded right angles, 2D or 3D variable angles, T-shape angles.
  • Wall end : flat or half-moon profile.
  •  Electrical rails with cable dividers.
  • Lining with the same look as the partition.
  • Solid sections : 2 standard or acoustic 13 mm plasterboards or 12 mm chipboards, vinyle-decorated, melaminated, laminated, or steel-faced.
    45 mm acoustic mineral wool.
  • Glazed sections, single or double glass : clear float glass, laminated glass, toughened glass, from 5 to 12.8 mm.
    Any type of sanding, decorative films, blinds, bamboos.
  • Glazing seal available : black, white, or grey.
  • Hinged doors :
    – 40 mm thick laminated wooden door.
    – 73 mm flush door, wooden or glazed.
    – Aluminium-framed glass door, single or double glass.
    – 8 or 10 mm toughened glass doors.
  • Wall-mounted or retractable sliding doors :
    – 40 mm thick laminated wooden door.
    – 8, 10, or 12 mm toughened glass doors.
    – Aluminium-framed glass door, single glass.
    – Aluminium-framed glass door, double glass, wall-mounted only.
  • Options and accessories :
    – Electrical rail as a floor track, or vertical electrical post.
    – Blinds with horizontal or vertical slats.
    – Slot chanels for shelves, suspension hooks, magnetic and erasable
    solid or glazed panels.
    – Integration of light switches into the door jamb.
    – Electric strikes and locks.
    – Automatic drop seal for wood, aluminium-framed and glass doors.
    – Invisible hinges and door closers.
    – Built-in SS hinges.
    – One-way pivots fixed on doorframe for wooden or glass doors.
    – Acoustic air transfer system.
    – LED lighting.
    – Curved walls: profiles, glass, and panels.
  • Acoustics :
    – Solid wall : RW = from 42 to 48 dB.
    – Glass wall : RW = from 39 to 41 dB.
    – Door set : RW = from 30 to 44 dB.

PRODUCT DETAILS

Designer

ABCD International
